External dimensions
technical parameter

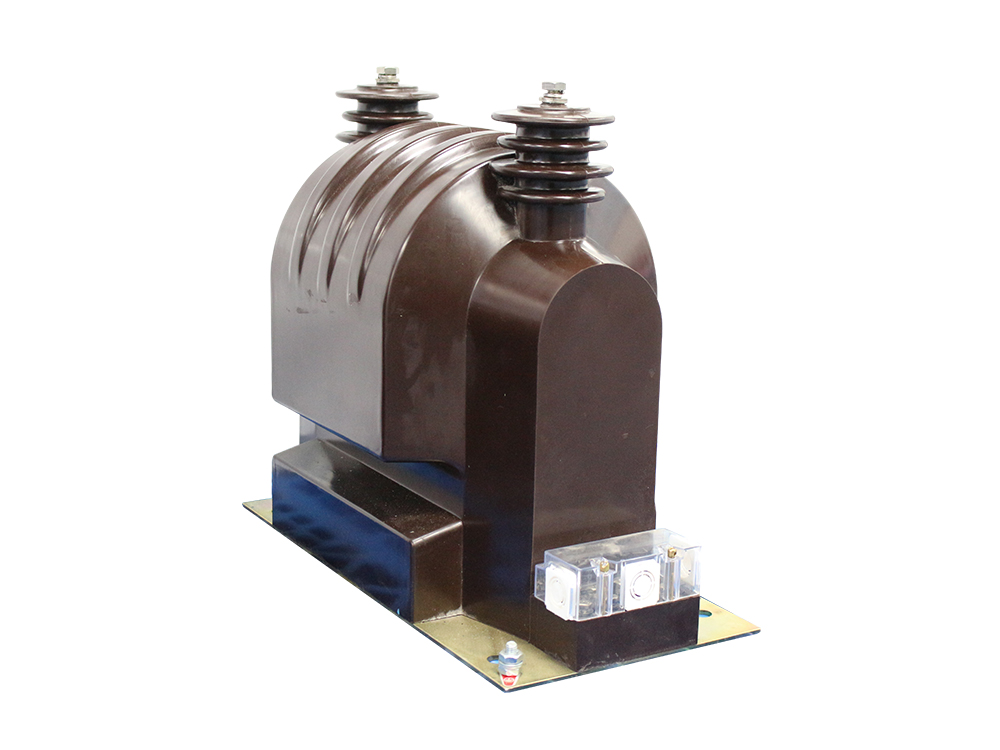

Indoor fully enclosed epoxy resin pouring type
The product performance meets the standards GB20840.1, 3 and IEC61869-1, 3
Rated insulation level 24/65/125kV
● Rated frequency 50Hz
| model | rated voltage ratio（kV） | Accurate pole combination | Accurate and rated output（VA）cosvФ=0.8 | Secondary thermal limit output(VA) | ||
| 0.2 | 0.5 | 3 | ||||
| JDZ9-24 | 20/0.1 | 0.2 0.5 | 30 | 60 | 500-1000 | |
| 20/0.1/0.22 | 0.2/3 0.5/3 | 20 | 50 | 300 | 500-1000 | |
