voltage transformerJDZW-10R3H
+ -
voltage transformerJDZX15-35ALR
+ -
voltage transformerJDZX16-35R
+
External dimensions
technical parameter

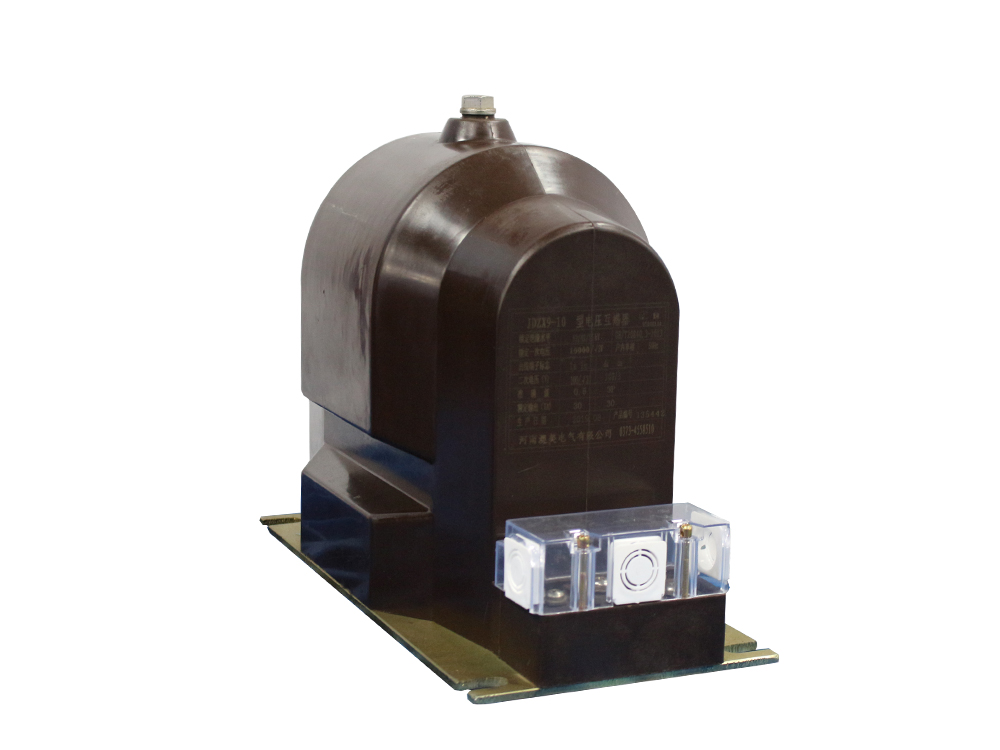

Indoor fully enclosed epoxy resin pouring type
The product performance meets the standards GB20840.1, 3 and IEC61869-1, 3
● Rated insulation level 12/42/75kV
● Rated frequency 50Hz
| model | rated voltage ratio（kV） | Accurate pole combination | Accurate and rated output（VA）cosvФ=0.8 | Secondary thermal limit output(VA) | ||
| 0.2 | 0.5 | 3 | ||||
| JDZX9-10 | 10/√3/0.1/√3/0.1/3 10/√3/0.1/√3/0.1/√3/0.1/3 | 0.2(0.5)/6P 0.2/0.5/6P | 20 | 50 25 | 50 | 300 |
| 6/√3/0.1/√3/0.1/3 6/√3/0.1/√3/0.1/√3/0.1/3 | 0.2(0.5)/6P 0.2/0.5/6P | 50 25 | 50 | 300 | ||
●The model of the fuse used is XRNP1-12，0.2A，0.5A，50kA
