External dimensions
technical parameter

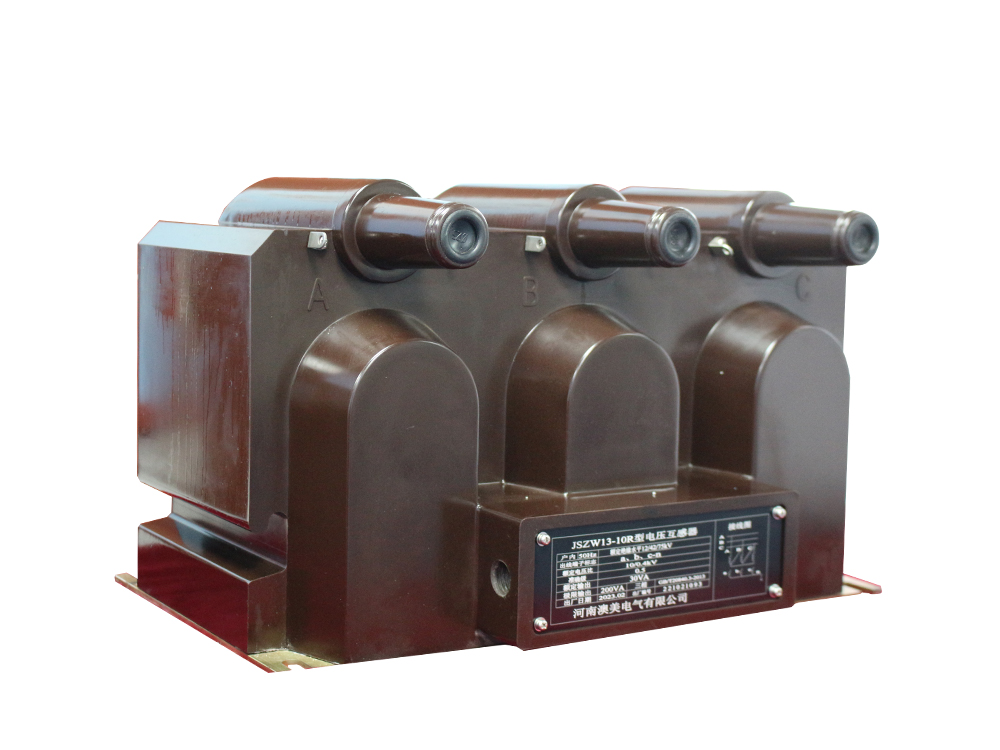

Indoor fully enclosed epoxy resin pouring type
The product performance meets the standards GB20840.1, 3 and IEC61869-1, 3
● Rated insulation level 12/42/75kV
● Rated frequency 50Hz
| model | rated voltage ratio（kV） | Accurate pole combination | Accurate and rated output（VA）cosvФ=0.8 | Secondary thermal limit output(VA) | ||
| 0.2 | 0.5 | 6P | ||||
| JSZW13-10R | 10/√3/0.1/√3/0.1/√3/0.1/3 10/√3/0.1/√3/0.22/√3/0.1/3 | 0.2/0.5/6P 0.5/3/6P | 15 | 25 | 50 | 400 |
●The model of the fuse used is XRNP1-12，0.2A，0.5A，50kA
